YANTOK YT-PS600C 3D polarization modulator 50000 lumens for digital cinema and large 3D projection projects
, ,

YANTOK YT-PS600C 3D Polarization Modulator

YANTOK YT-PS600C 3D polarization modulator supports up to 50000 lumens, ideal for digital cinemas and large 3D projection engineering. Auto 2D/3D, fan-free, patented design.

Product Overview

YANTOK YT-PS600C is a professional single-projector passive circular polarized 3D modulation device independently developed by yantuo electronics. As a high-brightness dedicated 3D solution for large commercial and engineering scenarios, this model supports projectors with an ultra-high brightness of up to 50,000 lumens, making it specially designed for projectors above 10,000 lumens, such as professional digital cinema projectors and large-scale engineering projectors.
Built with national patented optical technology and industrial-grade manufacturing standards, YT-PS600C features a CNC-machined aluminum alloy shell with laser engraving, which ensures excellent heat dissipation, high structural strength, and long-term durability. It adopts imported high-transmittance and ultra-fast-response polarization filters, paired with high-stability electronic components, to deliver ultra-low ghosting, high contrast, and immersive cinema-grade 3D images even under extreme brightness conditions.
The device supports wired synchronization, with automatic 3D signal detection and intelligent 2D/3D switching that requires no remote control or manual operation. Its built-in high-precision spatial positioning sensor ensures accurate and stable 2D/3D spatial alignment for perfect image performance.
The fully sealed, fan-free structure prevents dust contamination, effectively avoiding brightness attenuation and mechanical failures, making it highly reliable for continuous long-term operation in high-temperature and high-brightness working environments. Installation is extremely simple and can be completed within 3 minutes, powered directly by the projector with no need for an external power supply.
YT-PS600C is widely applied in professional digital cinemas, large-scale 3D projection engineering projects, large exhibition halls, science museums, immersive theaters, and high-end commercial projection systems.

Core Advantages

✅ National Patent Technology

YT-PS600C uses patented optical and control technology with independent intellectual property rights, ensuring stable and professional 3D modulation performance for high-power projection systems.

✅ Supports Up to 50,000 Lumens Projectors

This professional high-brightness version is specially designed for projectors above 10,000 lumens, making it the ideal 3D solution for digital cinemas and large-scale 3D engineering projects.

✅ Industrial-Grade CNC Aluminum Alloy Shell

The durable metal shell provides excellent heat dissipation, anti-collision performance, and stylish appearance, suitable for long-term heavy-duty use in commercial and engineering environments.

✅ Imported High-End Optical Components

Equipped with imported high-transmittance and ultra-fast-response polarization filters, ensuring sharp, clear, low-crosstalk 3D images even under ultra-high projector brightness.

✅  Auto 2D/3D Switching

It automatically detects 3D signals and switches between 2D and 3D modes without manual operation.

✅ Fan-Free & Fully Sealed Dust-Proof Structure

No fan, no noise, and fully sealed optical system to prevent dust, extend service life, and maintain stable light output for years.

✅ 3-Minute Quick Installation & Projector-Powered

Super easy installation without complicated wiring. Powered directly by the projector, greatly simplifying deployment and maintenance.

✅ Single-Projector RealD Circular Polarized 3D

Achieves professional cinema-grade RealD 3D effect using only one projector, greatly reducing equipment investment and operation costs.

✅ Ultra-Low-Cost 3D Glasses

Compatible with universal low-cost passive circular polarized 3D glasses, making later use and replacement highly economical for large venues.

✅ Stable Performance for Long-Term Operation

Designed for continuous 24/7 operation, with strong resistance to high temperature and high load, perfect for commercial cinemas and large engineering projects.

Full Specifications

  • Model: YT-PS600C
  • Product Type: Single-projector passive circular polarized 3D modulator
  • Optical Effective Area: 100mm x 80mm
  • Light Transmittance: 41%±1.5%
  • Light Efficiency: 17% ±1.5%
  • Ghosting Rate: <0.5%
  • Optical Principle: Circular polarization
  • Response Time: < 150μs
  • Supported Frame Rate: > 600Hz
  • Max Projection Screen Width: 25m
  • Recommended Screen Gain: 2.0 – 3.0 (recommended 2.4)
  • Polarization Contrast (Metal Screen): > 150:1
  • 2D/3D Conversion: Fully automatic(Cinema TMS)
  • Projector Sync Interface: DB37/DB15/BNC
  • Compatible Projectors: All DLP 3D projectors
  • Max Supported Projector Brightness: 50,000 Lumens
  • Structure: Fan-free, fully sealed, dust-proof
  • Power Supply: Powered by projector or USB 5V Power Adapter
  • Housing: CNC aluminum alloy with laser engraving
  • Patent: National patent protected technology
YANTOK YT-PS600C 3D polarization modulator 50000 lumens for digital cinema and large 3D projection projects

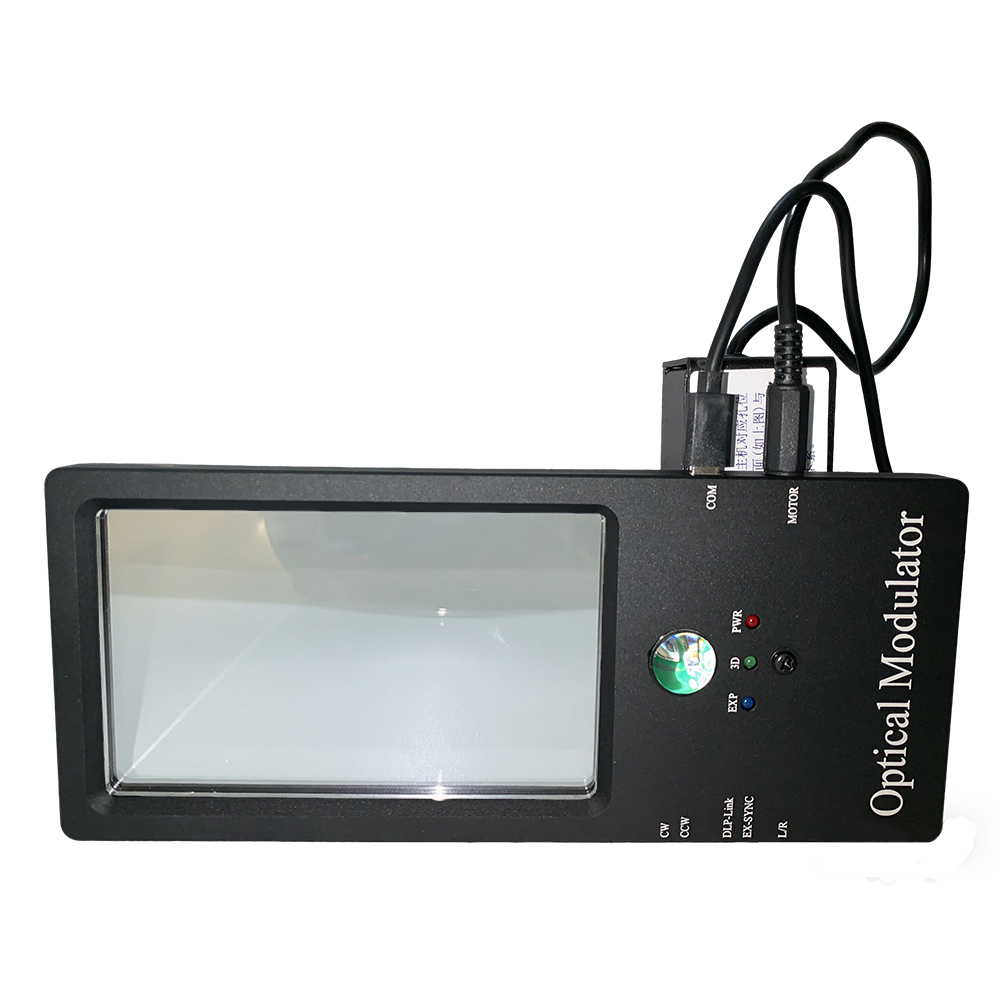

YANTOK YT-PS600C – Professional 3D polarization modulator supports up to 50000 lumens, ideal for digital cinemas and large engineering projects (Host and motor).
YANTOK YT-PS600C 3D polarization modulator 50000 lumens for digital cinema and large 3D projection projects

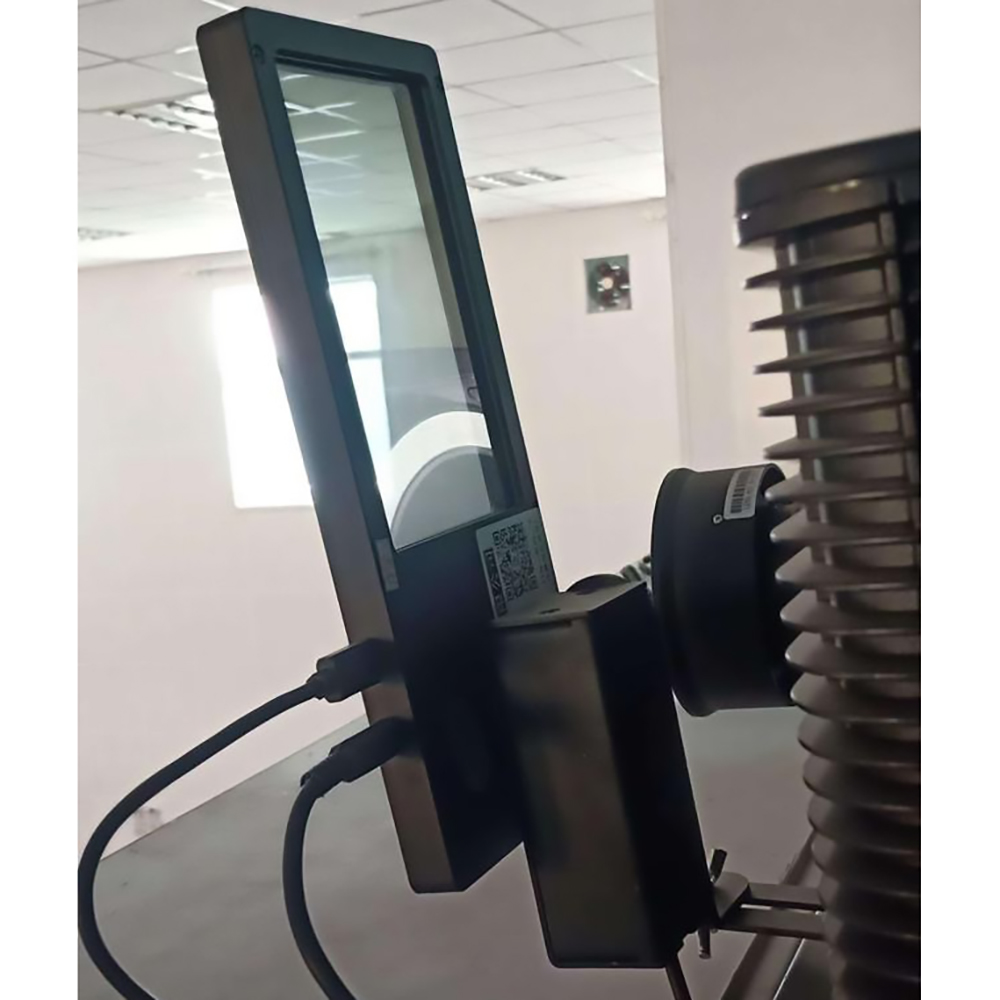

YANTOK YT-PS600C – Professional 3D polarization modulator supports up to 50000 lumens, ideal for digital cinemas and large engineering projects (Christie Digital).
YANTOK YT-PS600C 3D polarization modulator 50000 lumens for digital cinema and large 3D projection projects

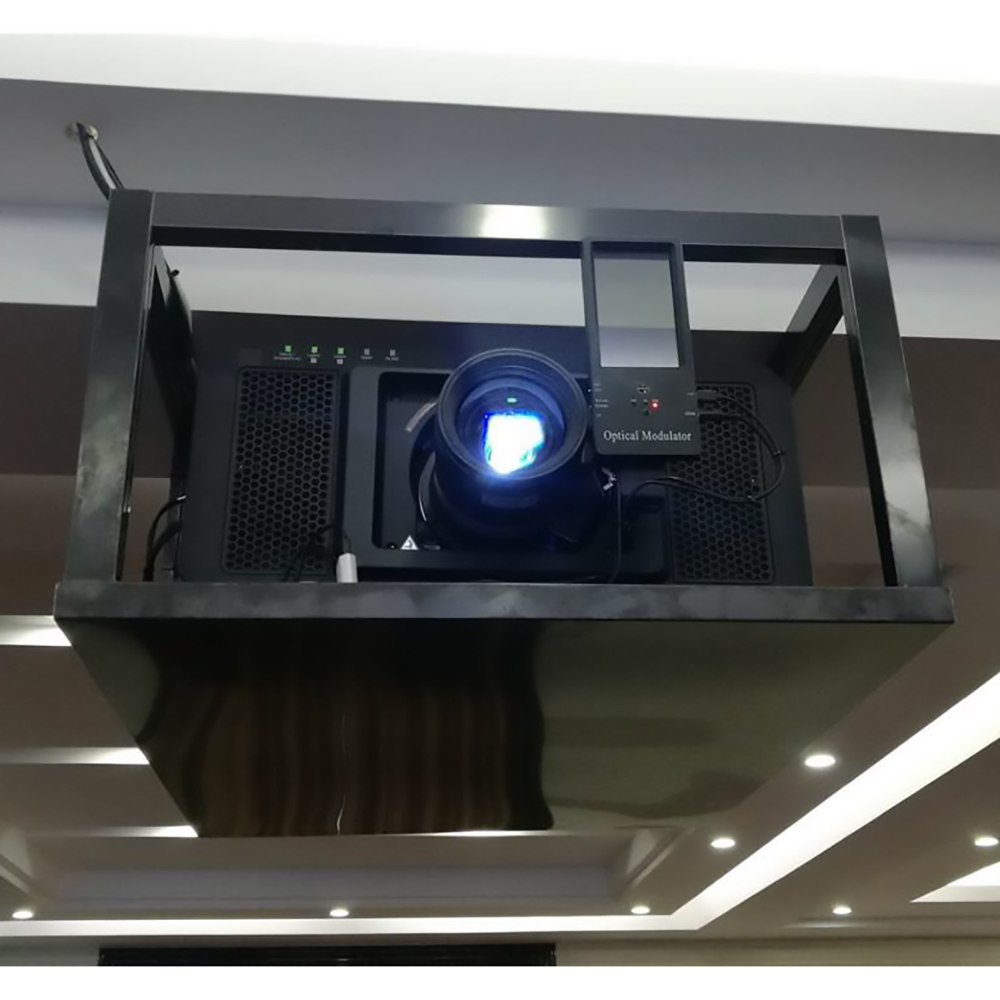

YANTOK YT-PS600C – Professional 3D polarization modulator supports up to 50000 lumens, ideal for digital cinemas and large engineering projects(Panasonic).

Applications

YANTOK YT-PS600C is specially designed for high-brightness, large-scale 3D projection scenarios:
  • Professional digital cinemas and large commercial cinema auditoriums
  • Large-scale 3D projection engineering and integration projects
  • High-power projector exhibition halls and experience centers
  • Science museums, technology centers, and large immersive theaters
  • Large business conference rooms and high-end commercial projection systems
  • 3D education, training, and simulation venues
  • High-end home cinema systems with ultra-high-brightness projectors

Why Choose YANTOK YT-PS600C?

YANTOK YT-PS600C is the most reliable and cost-effective high-power 3D polarization modulator for professional cinemas, engineering contractors, and system integrators. Its ability to support up to 50,000 lumens fills the market demand for large-scale cinema and engineering 3D solutions, perfectly matching high-brightness projectors above 10,000 lumens.
With patented optical technology, fully sealed fan-free structure, automatic 2D/3D switching, and industrial-grade durability, the YT-PS600C ensures stable, maintenance-free long-term operation. It greatly reduces the cost of 3D system construction while delivering cinema-quality 3D visuals.
Backed by YANTOK’s strict quality control, national patented technology, and global certification compliance, the YT-PS600C has become the preferred 3D solution for digital cinemas, large projection projects, and high-end commercial venues worldwide.
