YANTOK YT-PS300 HOE Dual Beam 3D Polarization Modulator

YANTOK YT-PS300 high optical efficiency dual beam 3D polarization modulator: 2x optical efficiency, 50000lm support, RealD/MasterImage compatible. Ideal for luxury digital cinemas & large 3D venues.

Product Overview

YANTOK YT-PS300 is high optical efficiency dual beam 3D polarization modulator designed for premium digital cinemas, large-scale 3D projection projects, and professional venues that demand maximum optical performance. As a dual beam 3D solution, it delivers approximately twice the optical efficiency of standard single beam 3D polarization modulator , significantly reducing brightness loss from projectors and ensuring brighter, clearer, and more vibrant 3D images on the big screen. It is widely regarded as the ideal 3D system for luxury commercial cinemas, high-end movie theaters, large exhibition halls,  and professional projection engineering sites.
Built on advanced circular polarization technology—the most widely used passive 3D technology in global cinemas and commercial theaters—YT-PS300 supports universal compatibility with standard RealD and MasterImage format passive circular polarized 3D glasses. This allows cinemas and venues to continue using their existing low-cost 3D eyewear inventory while upgrading to a higher-brightness, higher-efficiency 3D projection system. The dual beam structure minimizes light attenuation, preserves vivid color reproduction, and delivers an immersive, high-definition 3D viewing experience for large audiences.
This professional 3D modulator supports top-tier cinema projectors up to 50,000 lumens and projection screens as wide as 20 meters, making it suitable for large auditoriums and premium cinema halls. It supports automatic 2D/3D switching via TMS (Theatre Management System) and works with major projector brands including NEC, Barco, and Christie. With a wide operating temperature range of 0–60°C and industrial-grade stability, YT-PS300 ensures reliable 24/7 operation in high-intensity cinema environments.

Key Features

✅ Dual-Channel Design for Double Optical Efficiency

YT-PS300 uses a dual beam  structure that provides roughly 2x the Optical  efficiency of single-beam 3D modulators. This greatly reduces projector brightness loss, resulting in brighter, sharper.

✅ Circular Polarization Technology (Passive 3D)

Adopts industry-leading circular polarized optical technology—the most common and cost-effective 3D solution for commercial cinemas, 3D theaters, and polarized 3D displays worldwide.

✅ Universal Compatibility with RealD & MasterImage Glasses

Fully compatible with standard RealD and MasterImage passive circular polarized 3D glasses used in cinemas globally. Venues can reuse existing eyewear without additional investment, lowering operational costs.

✅ Ultra-High Light Transmittance & Optical Efficiency

Features an exceptional light transmittance of 78%±2.5% and optical efficiency of 30%±2%, ensuring minimal light loss and maximum brightness output for large-screen 3D projection.

✅ Low Ghosting & High Visual Clarity

Ghosting rate controlled below 0.5%, delivering clean, layered, and immersive 3D visuals with minimal crosstalk for a professional theater-grade experience.

✅ Supports Ultra-High Brightness & Large Screens

Supports cinema projectors up to 50,000 lumens and projection screens up to 20 meters wide, ideal for large digital cinemas, premium auditoriums, and large-scale engineering venues.

✅ Automatic 2D/3D Switching via TMS

Supports fully automatic 2D/3D conversion through the theater TMS system, enabling smooth, intelligent, and operator-free mode switching for daily screenings.

✅ Wide Compatibility with Major Cinema Projectors

Officially supports leading professional cinema projector brands: NEC, Barco, Christie. Works with standard sync interfaces including DB73, DB15, and BNC for seamless integration.

✅ Strict Optical & Environmental Requirements

Designed for projection ratios above 1.4:1, screen gain between 1.8–3.0 (recommended 2.4), and minimum polarization contrast of 150:1, ensuring professional and stable 3D performance.

✅ Heavy-Duty Industrial Construction

Robust build for long-term continuous cinema operation, with a net weight of approximately 40KG and a wide operating temperature range of 0–60°C for stable performance in demanding environments.

Technical Specifications

  1. 3D Filter Glass Size:
    Main window: approx. 190mm x 115mm
    Sub window: approx. 300mm x 160mm
  2. Light Transmittance: 78% ±2.5%
  3. Optical Efficiency: 30% ±2%
  4. Ghosting Rate: < 0.5%
  5. Required Projection Ratio: > 1.4:1
  6. Minimum Throw Distance:8M
  7. Optical Principle: Circular polarization
  8. 3D Filter Response Speed: 150μs
  9. Supported Frame Rate: 24/48/60/120fps
  10. Required Screen Gain: 1.8–3.0 (recommended 2.4)
  11. Minimum Screen Polarization Contrast: 150:1
  12. Supported Sync Interfaces: DB73 / DB15 / BNC
  13. 2D/3D Conversion: Automatic via TMS
  14. Required projection distance: 8 to 30m
  15. Max Supported Projector Brightness: 50000 Lm
  16. Supported Projector Brands: NEC, Barco, Christie
  17. Net Weight: Approx. 40KG
  18. Operating Temperature: 0°C – 60°C

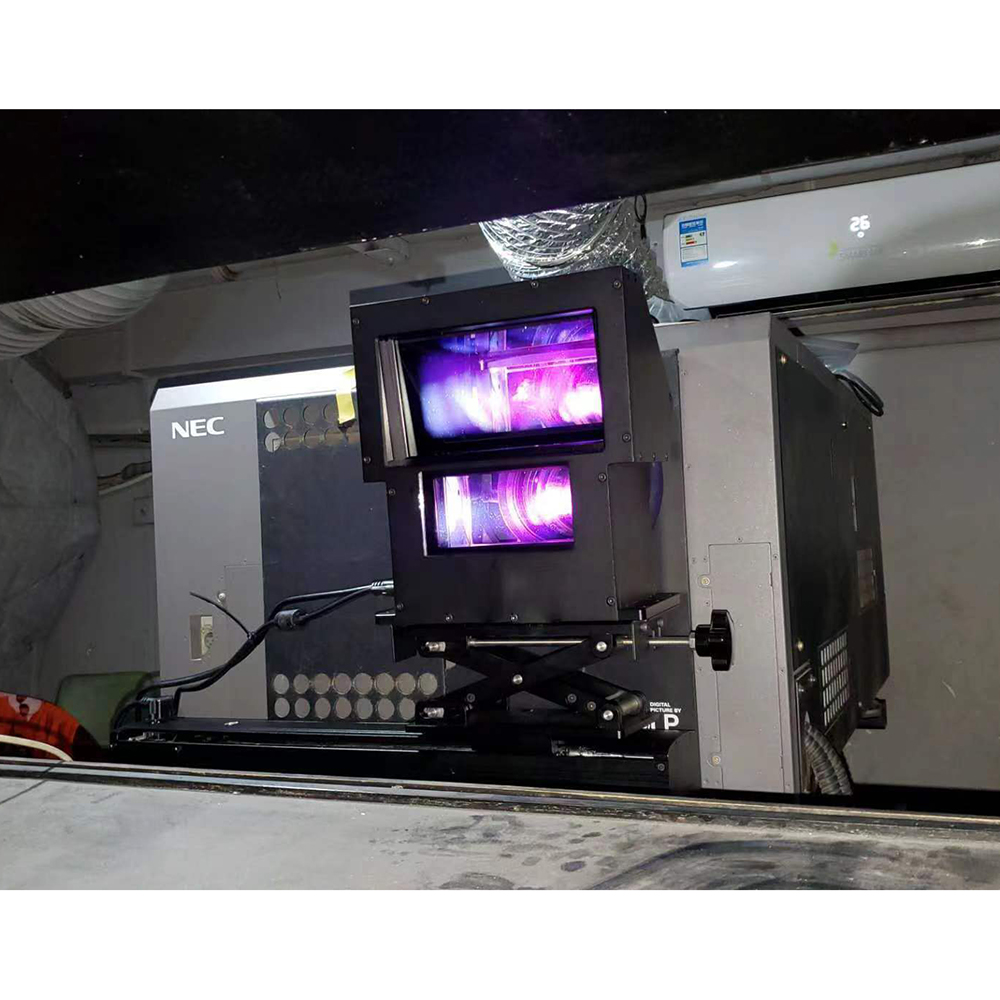

YANTOK YT-PS300 high-efficiency dual-beam 3D polarization modulator for digital cinema and large 3D projection projects
YANTOK YT-PS300 – High-efficiency dual-beam 3D modulator for luxury cinemas, high brightness, RealD/MasterImage compatible.

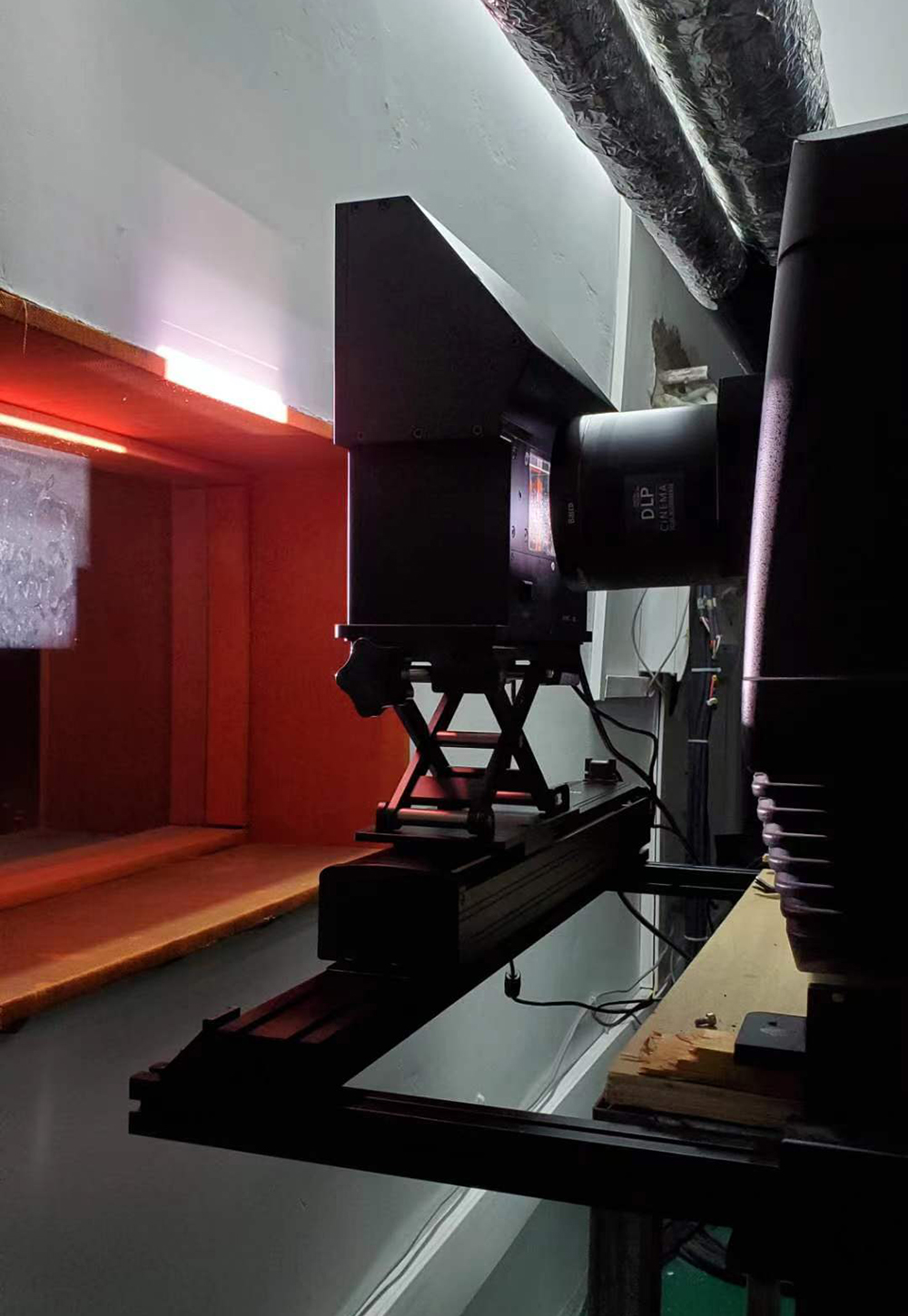

YANTOK YT-PS300 high-efficiency dual-beam 3D polarization modulator for digital cinema and large 3D projection projects
YANTOK YT-PS300 – High-efficiency dual-beam 3D modulator for luxury cinemas, high brightness, RealD/MasterImage compatible.

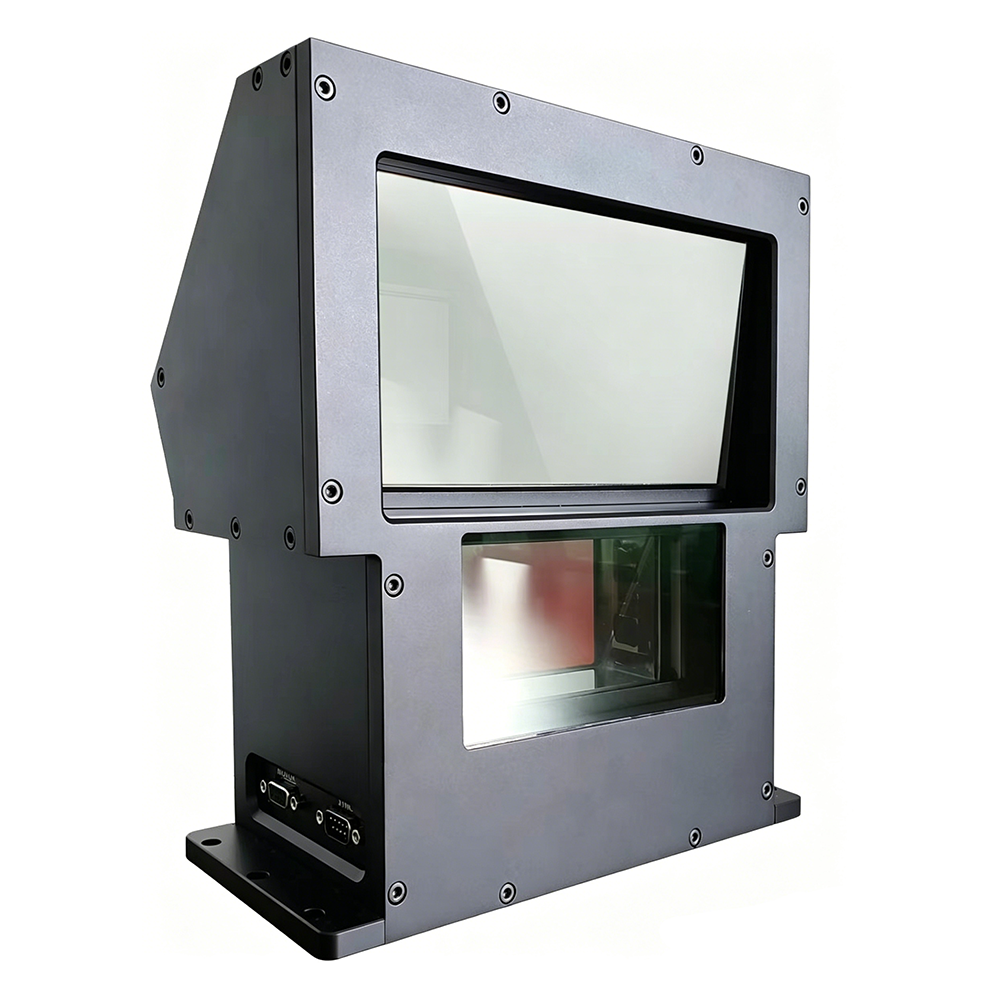

YANTOK YT-PS300 high-efficiency dual-beam 3D polarization modulator for digital cinema and large 3D projection projects
YANTOK YT-PS300 – High-efficiency dual-beam 3D modulator for NEC projector, high brightness, RealD/MasterImage compatible.

Applications

YANTOK YT-PS300 is specially designed for high-end 3D projection environments:
  • Luxury digital cinemas and premium commercial movie theaters
  • Large-scale 3D projection engineering venues
  • High-brightness large-screen cinema halls
  • Auditoriums, exhibition centers, and immersive theater spaces
  • Professional cinema chain upgrade projects

Why Choose YANTOK YT-PS300?

For professional cinema operators and large-scale 3D projection contractors, brightness, efficiency, and stability are critical. YANTOK YT-PS300 solves the common problem of excessive brightness loss in single-beam 3D modulator with its high-efficiency dual beam design, doubling optical  efficiency and delivering brighter, more vivid 3D images.
Its full compatibility with RealD and MasterImage 3D glasses allows cinemas to retain existing low-cost eyewear inventory, while support for NEC, Barco, and Christie projectors ensures universal integration. With TMS-controlled automatic 2D/3D switching, 50,000-lumen high-brightness support, and 20m large-screen capability, YT-PS300 is the ultimate choice for premium digital cinemas and high-end 3D engineering projects.
Backed by industrial-grade build quality, strict optical standards, and stable long-term performance, YT-PS300 helps cinemas enhance audience experience, reduce projector load, extend equipment life, and create a more competitive 3D screening service.
